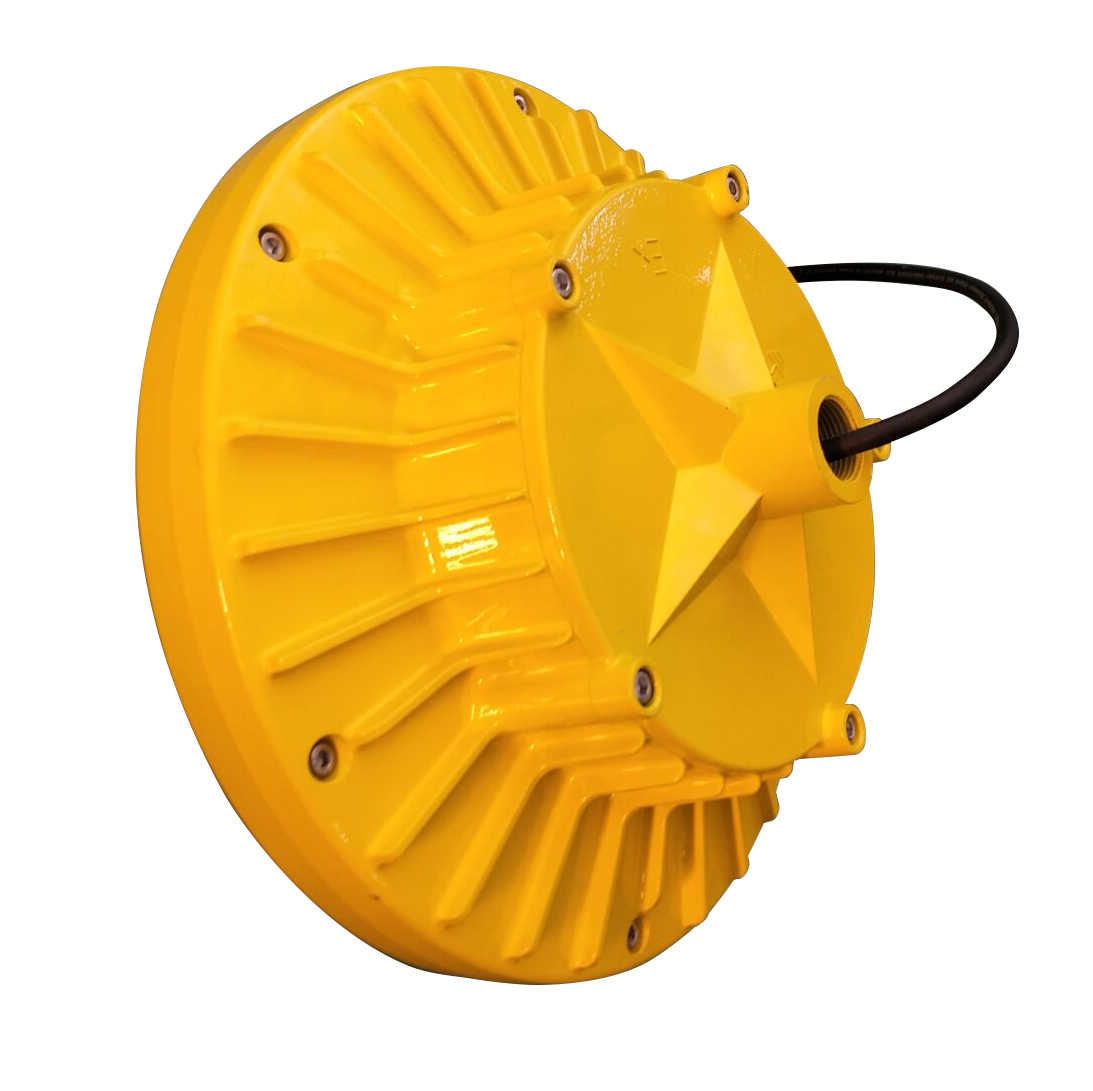

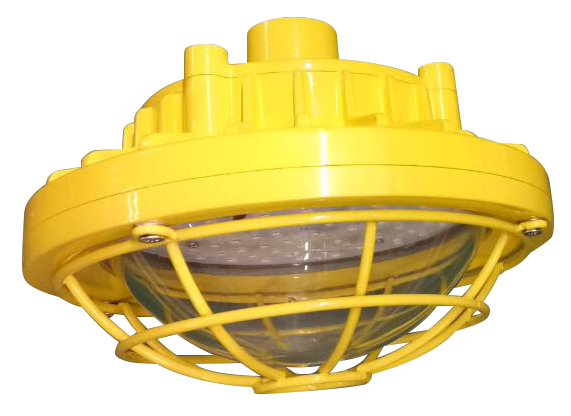

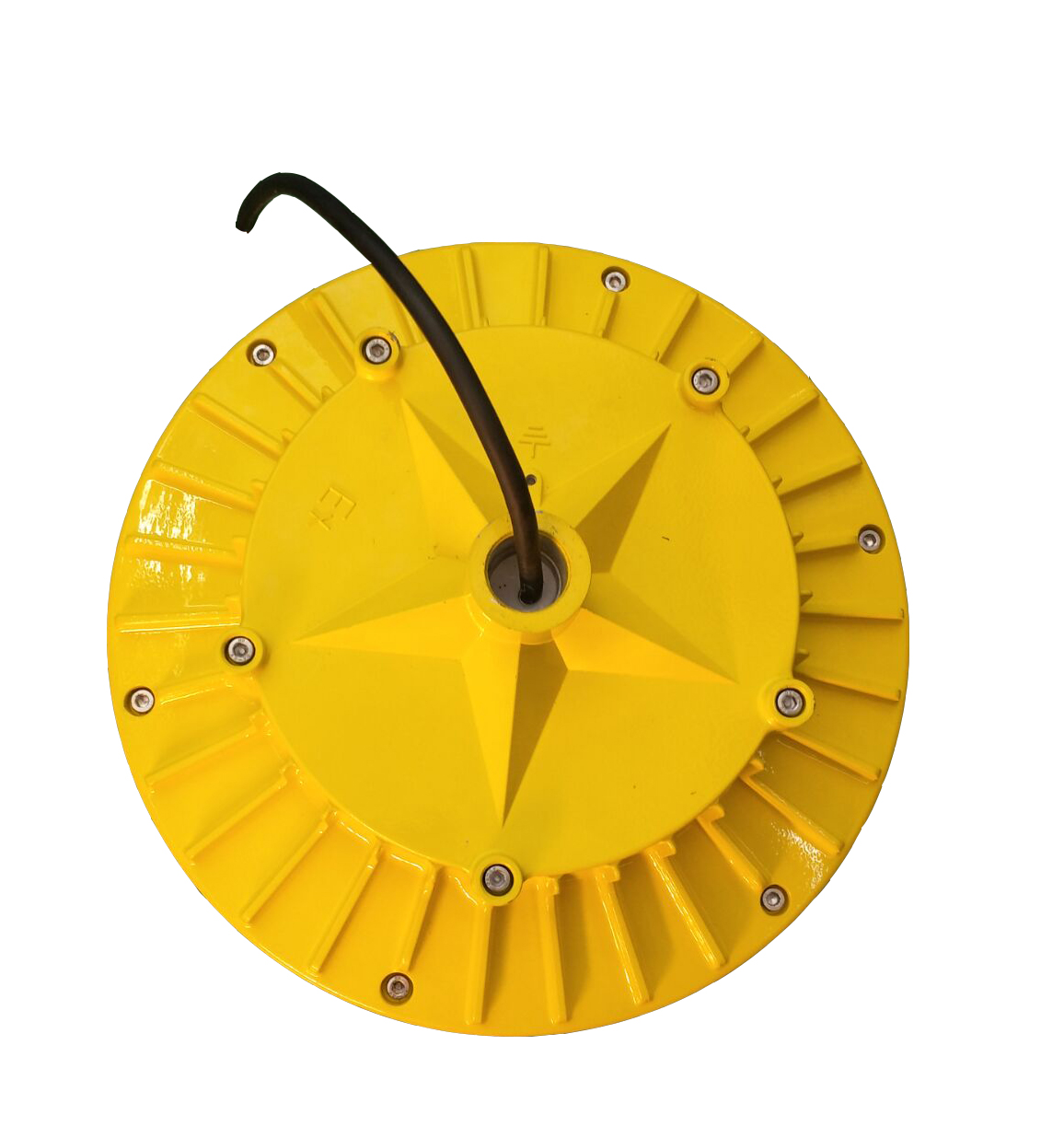

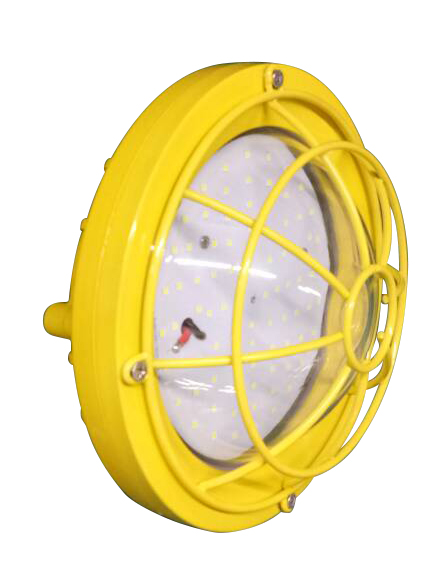

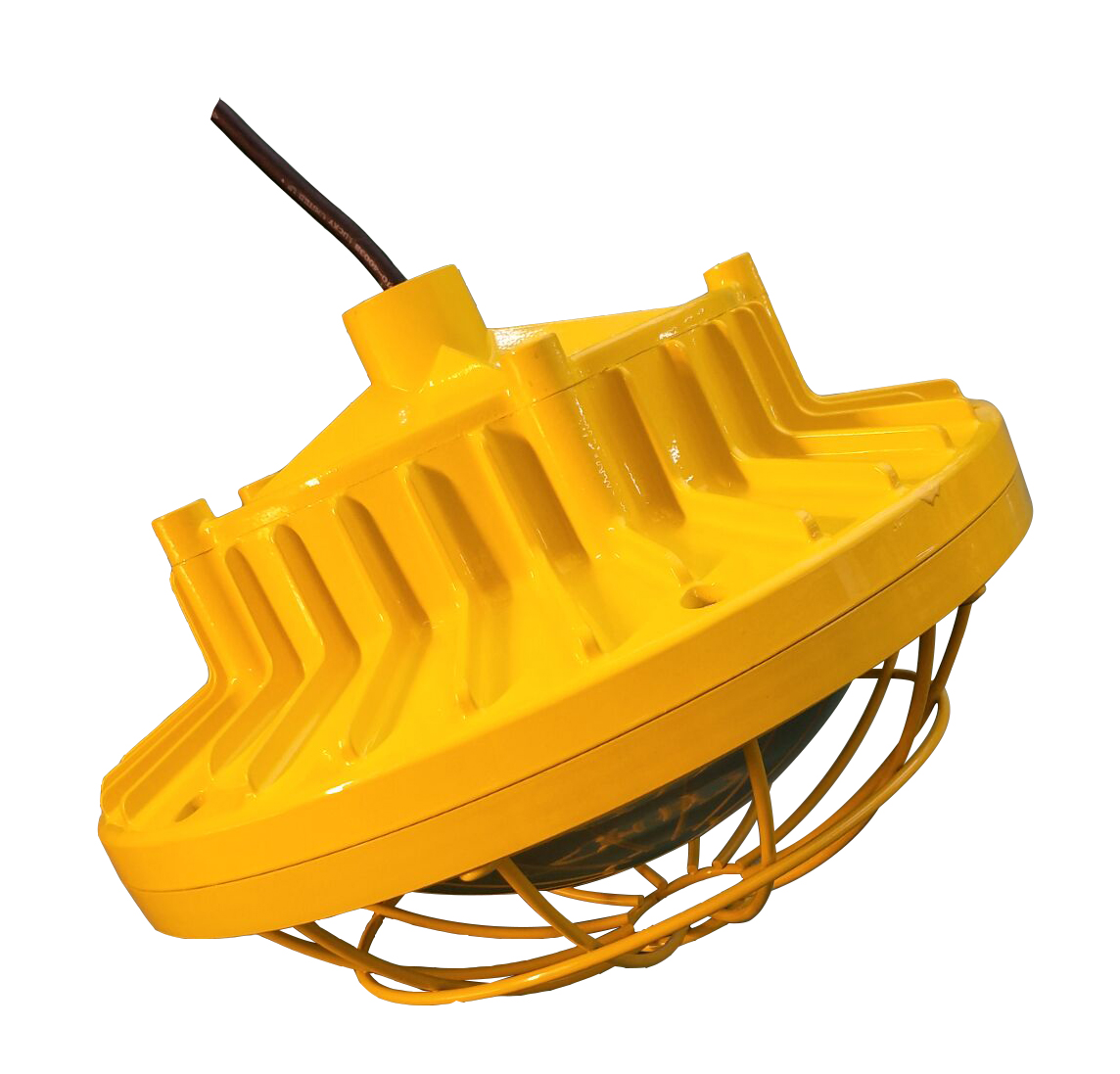

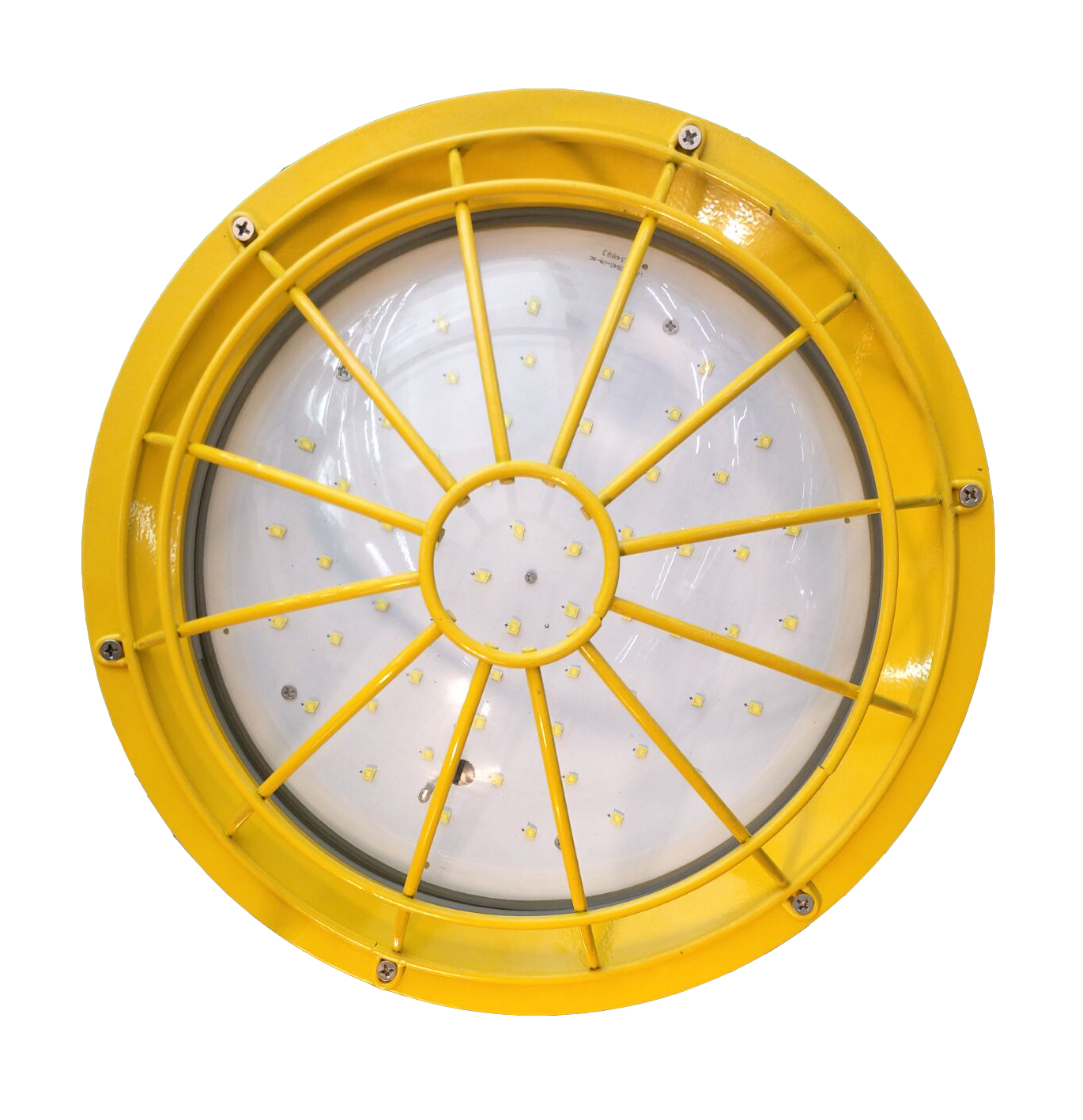

EX certificate explosion-proof light 100W 120w 150w 185w 200w atex explosion proof led highbaylight
-
Feature:
The explosion-proof lamp adopts high-quality LM80 certification chip and ultra-clear tempered glass, so that the light transmission of explosion-proof lamp is better. Die casting aluminum shell and reliable long-life power supply make the rated life of explosion-proof lamp more than 5000 hours, saving 70% - 80% compared with HPS / MH. The working temperature can be operated from - 40 ℃ to + 50 ℃. It is certified by the United States ul844; ul1598;Canada CAS137,;CAS250.0, and the luminous flux is up to 120lm / W, which has the industry leading effect.
Technology Parameters
Model No.
MIC-EX-GB-XXX
LED Source
Bridgelux
CCT
5000K (Provides 2700K to 6500K)
Luminous Efficency
120lm/W
Beam Supply
120°
Input
100-277Vac 50-60Hz
PF
>0.95
THD
<10%
IP Rating
IP66
Operating Temp.
-40°C to +50°C (-40°F to 122°F)
Certifications
UL844, DLC, ROHS, SAA
UL844 Approved
Class I,Division 2
Dimension
Φ460*243mm/Φ18.1*9.6"
Watt Options
100W / 120W / 150W / 185W / 200W
Net Weight (KG)
14.3 kg
Tip:
When replacing the bulb (tube), the explosion proof joint surface of the explosion-proof lamp shall be properly protected to prevent damage; the cleaned explosion proof surface shall be coated with phosphatizing paste or 204-1 anti-rust oil, and no other paint shall be applied; the explosion proof surface shall not have rust layer, and if it has slight rust, it shall be cleaned without pitting. To increase safety type lamps and lanterns, dustproof and waterproof, ensure that the sealing ring intact, reliable, is particularly important. If the seal damage is serious, to use the same specifications and materials with the seal replacement, if necessary, to replace the entire lamp. Pay attention to whether the lampshade is in good condition or not, and replace it in time if it is damaged.
